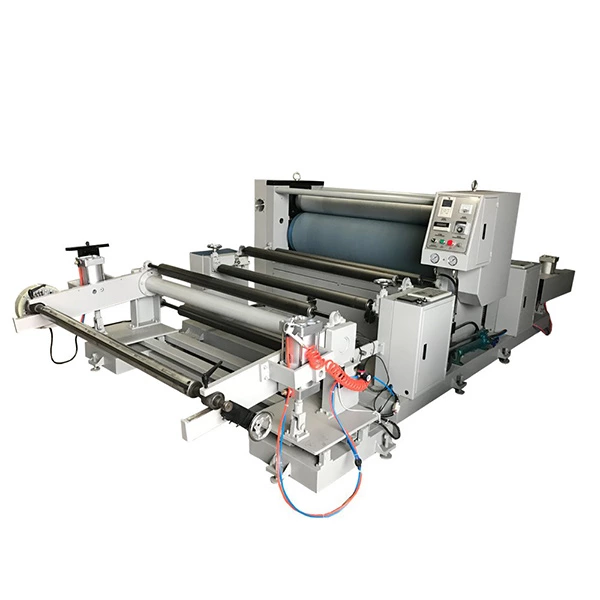

Register Embossing Machine Printing Online

Production Capaciy
30m/min
MOQ
1 set
Application
For gift paper printing and embossing
Automatic Grade
Automatic
Certification
CE
Customized
Yes
Condition
New
Color
White
Transport Package
Standard Packing
Contact Now

Product Features

  1. Unwind & Rewind Tension Control by PLC
  2. Air shaft loading
  3. Unwind & Rewind & Paper roller controlled by hydraulic
  4. Printing unit, shaftless type, pneumatic heavy type doctor blade, rubber roller pneumatic lifting
  5. Heating by electric, independent temp controller
  6. Register embossing (Optional)

Technical Parameters

Model SLYH-920P SLYH-1150P SLYH-1300P
Embossed Width 920mm 1150mm 1300mm
Embossed Speed 60- 80m/min 60-80m/min 60-80m/min
Unwind Dia 1000mm 1000mm 1000mm
Rewind Dia 1200mm 1200mm 1200mm
Unwind Brake 20KG 20KG 20KG
Rewind Motor 4KW 5.5KW 7.5KW
Working Pressure 3-8Mpa 3-10Mpa 3-10Mpa
Heating Power 5.2KW 7.8KW 9KW
Total Power 15KW 18KW 20KW
Weight 6200KG 6500KG 6800KG
Dimensions 7000*2070*2300 7000*2300*2300 7000*2450*2300
