Use

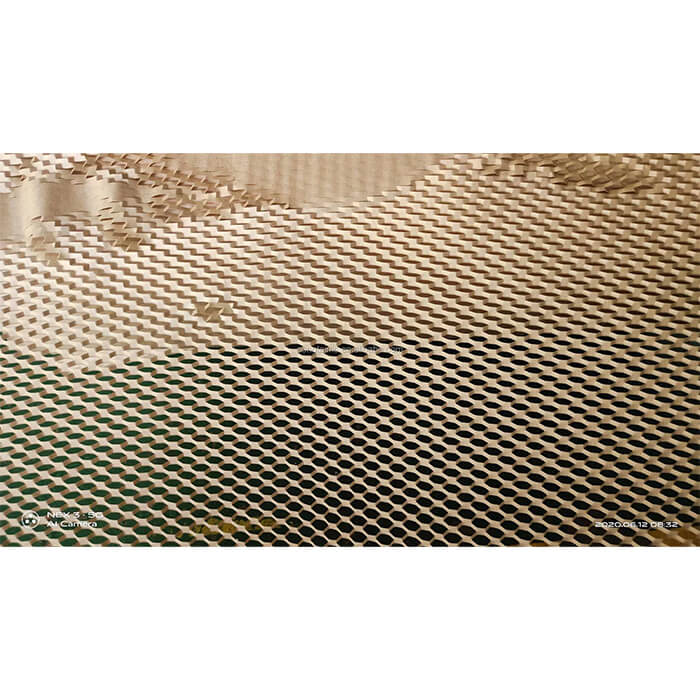

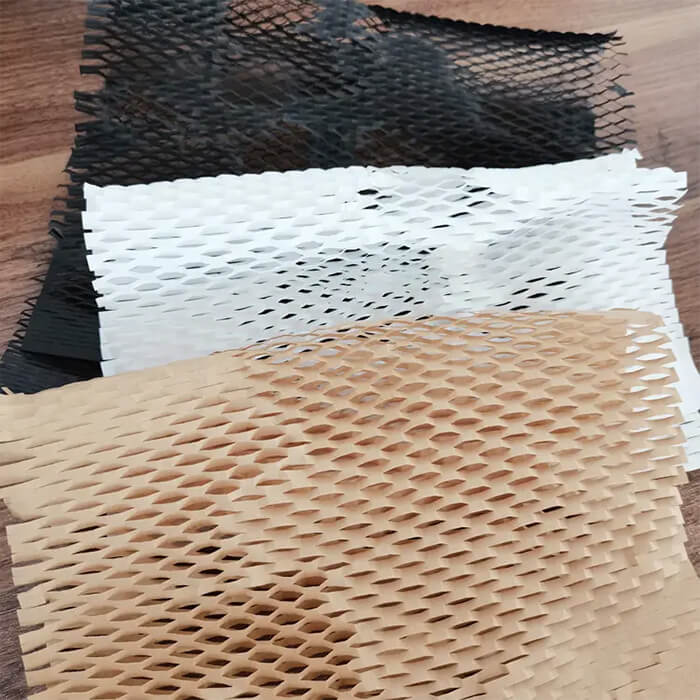

1. This machine is suitable for die cutting honeycomb paper, wrapping paper, shock-absorbing paper, kraft paper, fish net paper from 70-100gsm
2. The unwinding, cutting and rewinding in one process
3. Main motor equipped with inverter for speed regulation
4. Tension controlled automaticlly by magnetic powder brake and clutch, both is 10kgs
5. Automatic meter counting device, automatically stop after it reaches the length you set
6. Pneumatic cylinder to control the cutting module up and down
7. Optinal part: Automatic lifting system in unwinding and web guiding system
| Model | SLFW-A520 |
|---|---|
| Max material width | 510mm |
| Machine working speed | 0-120m/min |
| Unwinding diameter | Max.1300mm |
| Rewinding diameter | Max.350mm |
| Unwinding roll weight | Max.1Ton |
| Unwinding shaft | 3" |
| Rewinding shaft | 1" / 1.5" / 2" |
| Machine power | 4kw |
| Power supply | 380v-415v, 50-60Hz |
| Dimensions(mm) | 2900 xc 1900 x 1500mm |
| Machine weight | 1500kg |
