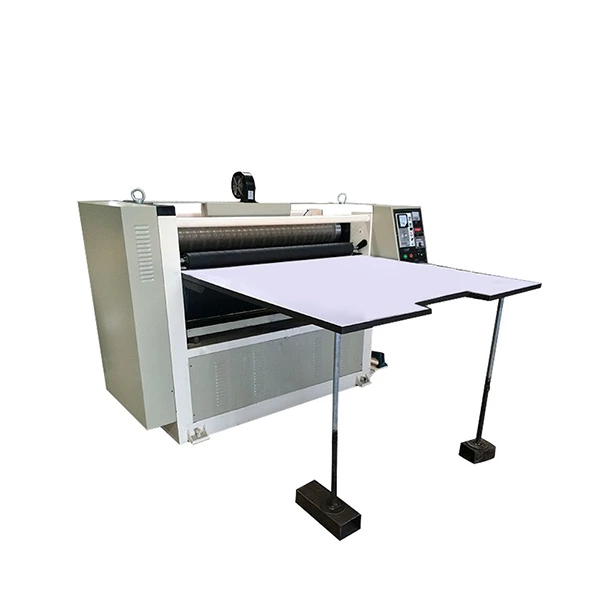

Paper Sheet Embossing Machine

Contact Now
Paper Sheet Embossing Machine

Product Usage

Its widely used in embossing many kinds of paper, such as wal calendars, desk calendars, covers of books, lucky envelopes, invitation cards, congratulatory cards, packing paper-boxes and etc. Such a technology can make the products more beautiful and more exquisite.

Product Features

  1. Traction roller system remove wrinkle
  2. Left and right pressure adjustable
  3. Automatic counting
  4. Speed motor

Technical Parameters

Model 650A 720A 920A 1 000A 11 50A 1300A
Embossed Width 650mm 720mm 920mm 1000mm 1150mm 1300m
Embossed Speed 0-38m/min 0-38m/min 0-38m/min 0-42m/min 0-42m/min 0-42m/min
pager Range ≥80g/m² ≥80g/m² ≥80g/m² ≥80g/m² ≥80g/m² ≥80g/m²
Working Pressure 3-8Mpa 3-8Mpa 3-10Mpa 3-10Mpa 3-10Mpa 3-10Mpa
Host Power 1.5KW 1.5KW 2.2KW 4.0KW 4.0KW 5.5KW
Heating Power 3.0KW 3.0KW 3.0KW 3.0KW 3.0KW 3.0KW
Overall Weight 1250KG 1350KG 1800KG 2500KG 2700KG 2900KG
Dimensions (mm) 1500*1350*1300 1600*1350*1300 800*1650*1450 25001900*1700 25002000*1700 2500-2200*1700
