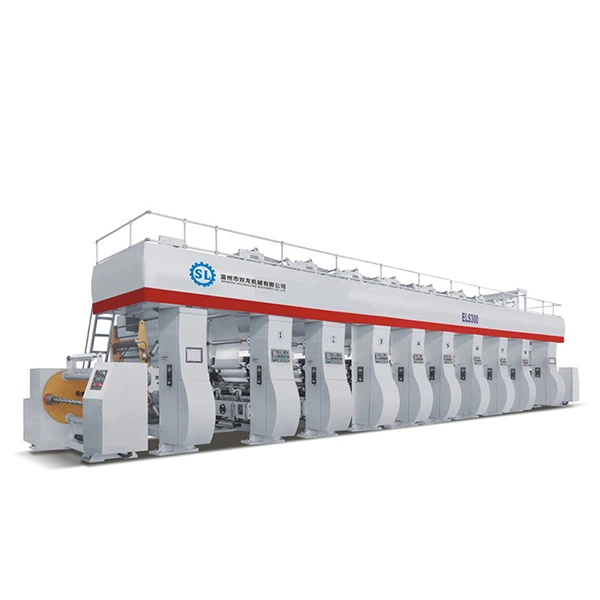

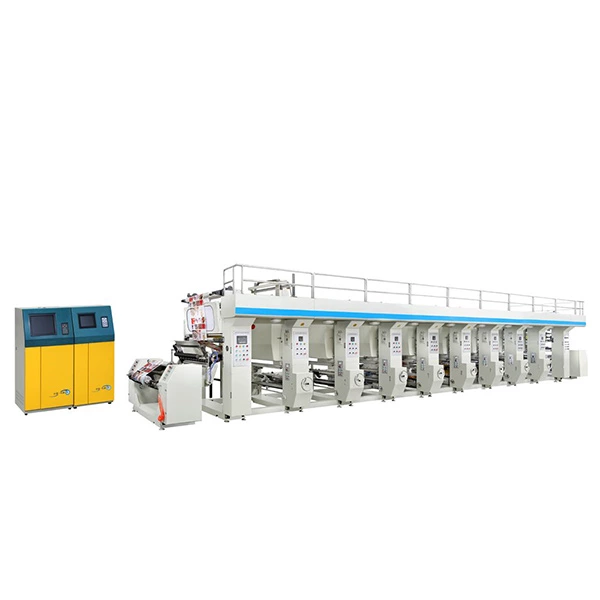

Computer Color Register Rotogravure Printing Machine

Products application

This machine is  suitable  for  multi-color  once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc. Its printing speed is 100m/min, while the mechanical speed is 130m/min.

Product Features

  1. In permutation and combination style, with possible addition and reduction of printing color class and addition of reverse printing mechanism as required by customers.
  2. Whole machine computer register, static inspection computer optional.
  3. Main motor with inverter speed control.
  4. Full automatic tension controller and magnetic powder brake for control of unrolling.
  5. Vector frequency conversation for control of rolling and discharging traction to support more stable operation.
  6. Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
  7. Pneumatic impressing system and pneumatic doctor blade system
  8. Turret un/rewinding section, non-stop changing roll..
  9. Drying system adopts fully closed oven, outer secondary air resource returning design. The temperature is controlled by intelligent temperature controller, while the returning roller adopts water cooling device to control to assure the cooling of film.
  10. Diaphragm-type pneumatic ink auto circulating system
  11. Aluminum alloy guide roller with dynamic balancing and sealed.

Technical parameters

The specification is depends on 8 colors:

Model  SLAY- 800  SLAY -1000  SLAY-1200
Printing Width 800mm 1000mm 1200mm
Printing Color 8 Color
Max Printing Speed 130m/min
Un/Rewind Dia  ф600mm (Φ800mm Optional)
Material Core Dia  ф76mm ( ф156mm Optional)
Printing Cylinder Dia  ф100~ф380mm
Register Precision Vertical:≤±0.12mm(Auto)
Horizontal:≤±0.12mm(Manual), Horizontal Auto Optional
Tension Control Range  3~25kg/Full  Width
Heating Way Electric Heating(Gas/Oil Heating Optional)
Total Power 100Kw 110Kw 120Kw
Weight 13000KG 14000KG 15000KG
Dimension  L13000×W3000×H2650mm  L13000×W3200×H2650mm  L13000×W3400×H2650mm
